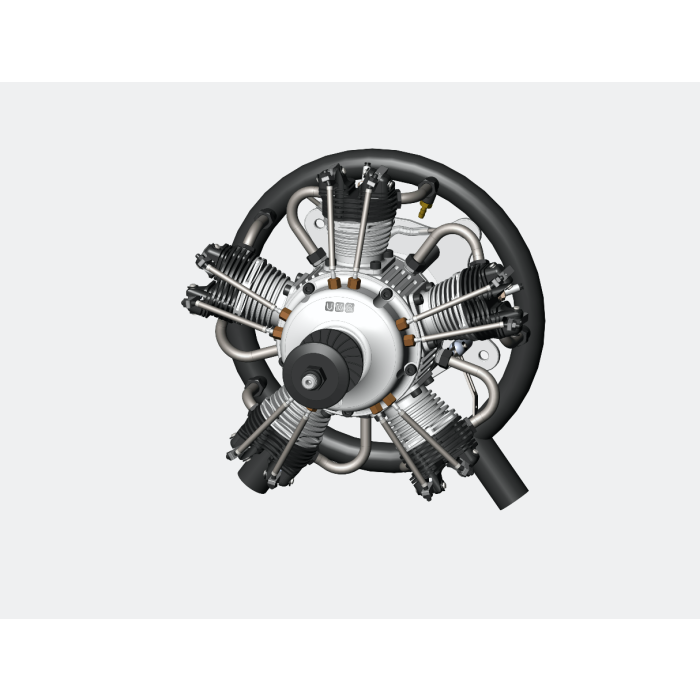

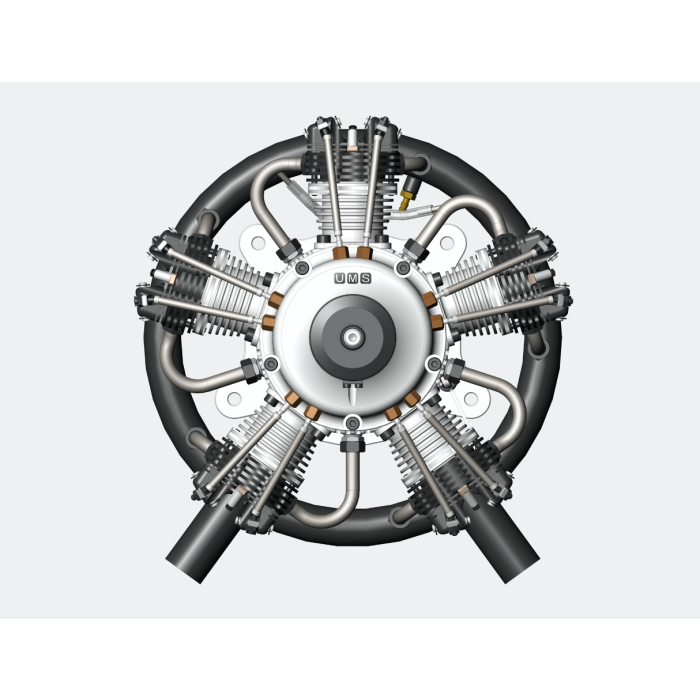

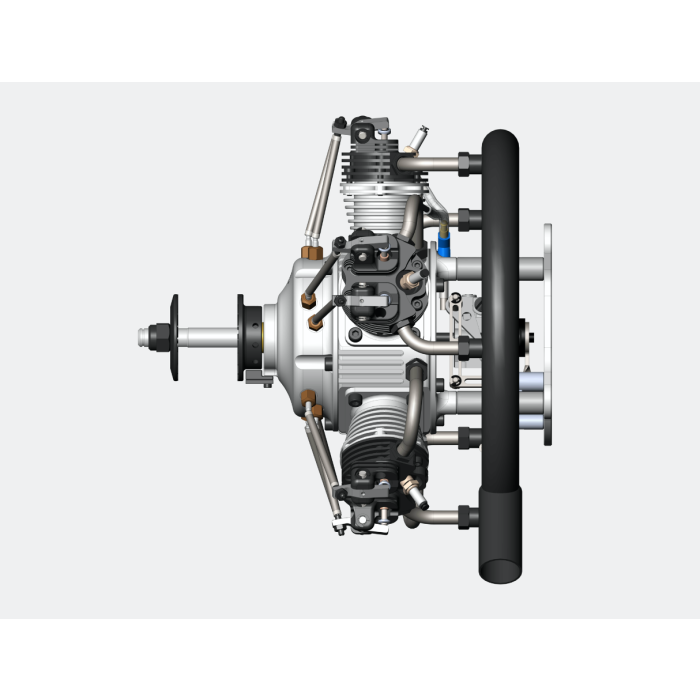

UMS 75cc Gas 5 Cylinder Engine with Pump

The UMS 5-75 is a very reliable radial engines which uses gas fuel. UMS has a ton of experience building radial engines. The design and construction are upper class leading to a outstanding reliability of these engines. They are easily serviceable. All critical parts are easily accessible.

Key Features

• 5 cylinder radial configuration absolutely stunning looks and realism
• 75cc displacement perfect for your scale project
• Comes complete with exhaust collector ring,spark plugs,electronic ignition, and engine mount ready to run
• User-friendly choke and throttle bellcranks included makes installation and operation easy
• Made from aluminum or bar stock where appropriate and CNC machined accurate and repeatable specifications each and every time
• Cylinder head and crankcases produced from aircraft grade alloys
• Heavy duty double bearing crankshaft
• Billet aluminum pistons and hardened steel rings
• Hard chromed and lapped cylinder bores
• Hardened steel cams
• Burns 87-110 octane gasoline with 32:1 gas/oil mixture

Technical information

• Cylinder:                   5
• Cylinder capacity:     75cc
• Bore:                         26.5mm
• Stroke:                      27.5mm
• Power:                      9kg of thrust
• RPM Range:            1200-6000
• Weight:                     2.7kg incl.(ignition coil and silencer)
• Width:                       231mm
• Lenght:                     162mm
• Propeller:                  22 x 10 1000 - 6600 RPM 2 Blade Menz's
• Propeller:                  23 x 10   900 - 6300 RPM 2 Blade Menz's
• Propeller:                  21 x 10   700 - 6000 RPM 3 Blade Biela
• Propeller:                  19 x 10   700 - 5700 RPM 4 Blade Biela
• Muffler type:              Collector Ring
• Plug type:                  1/4-32 RECXL
• Carburetor:                WT-621
• Petrol/Oil Mix:           1:32
