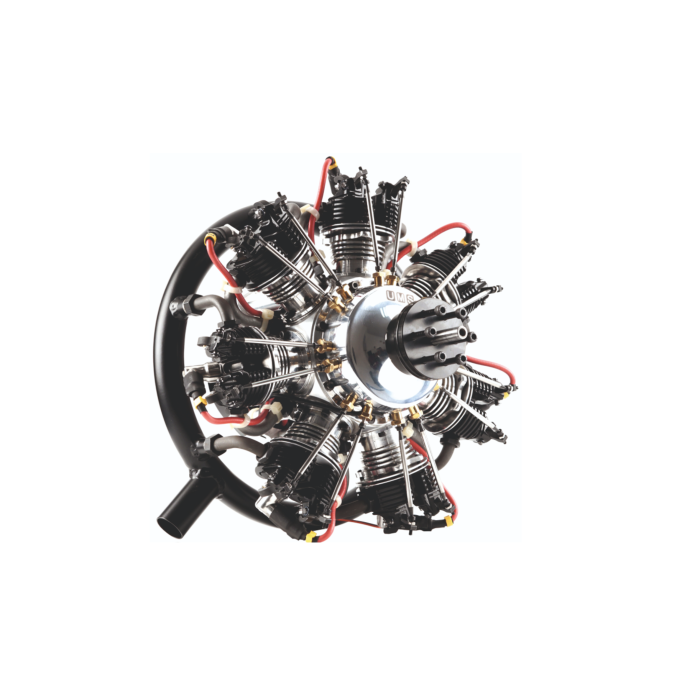

UMS 360cc Gas 7 Cylinder Engine with Pump

The UMS 7-360 is a very reliable radial engines which uses gas fuel. UMS has a ton of experience building radial engines. It has brought more than 2000 engines to market so far. The design and construction are upper class leading to a outstanding realibility of these engines. They are easily servicebale. All critical parts are easily accesisble.

Technical information

• Cylinder:                   7
• Cylinder capacity:     360cc
• Bore:                         40mm
• Stroke:                      42mm
• Power:                      38kg of thrust
• RPM Range:            1000-6000
• Weight:                     8.5kg incl.(ignition coil and silencer)
• Width:                       335mm
• Lenght:                     242mm
• Propeller:                  39 x 14  1000 - 5900 RPM 2 Blade Menz's
• Propeller:                  39 x 16    900 - 5800 RPM 2 Blade Menz's
• Propeller:                  37 x 16    800 - 5300 RPM 3 Blade Biela
• Muffler type:              Collector Ring
• Plug type:                  CM-6 / 10mm RCEXL
• Carburetor:                WT 225 Carburetor
• Petrol/Oil Mix:           1:32
