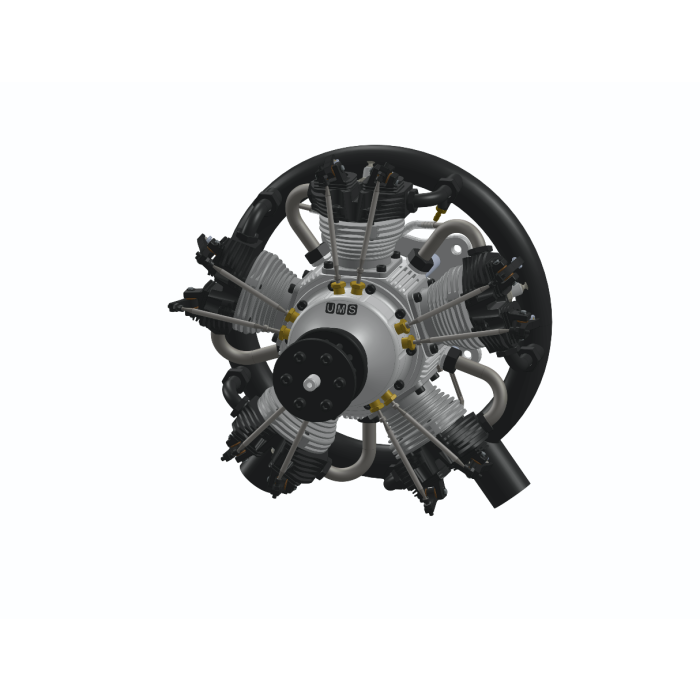

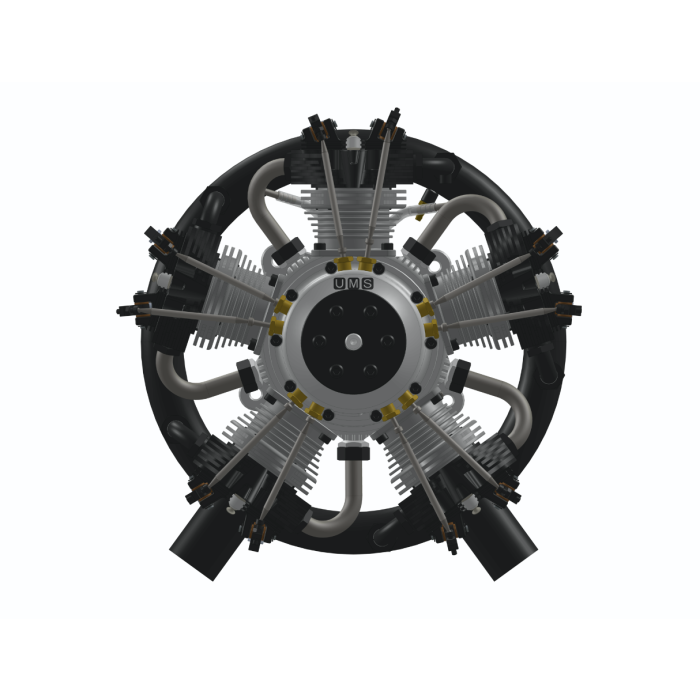

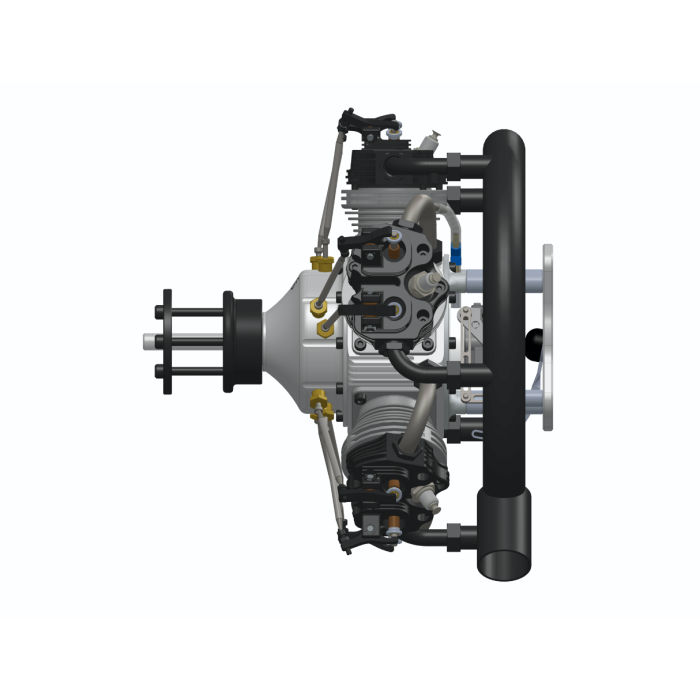

UMS 180cc Gas 5 Cylinder Engine with Pump

The UMS 5-180 is a very reliable radial engines which uses gas fuel. UMS has a ton of experience building radial engines. The design and construction are upper class leading to a outstanding realibility of these engines. They are easily servicebale. All critical parts are easily accesisble.

Key Features

• 5 cylinder radial configuration absolutely stunning looks and realism
• 180cc displacement perfect for scale project
• Comes complete with exhaust collector ring,spark plugs,electronic ignition, and engine mount ready to run
• User friendly choke and throttle bellcranks included makes installation and operation easy
• Made from aluminum or bar stock where appropriate and CNC-machined accurate and repeatable specifications each and every time
• Cylinder head and crankcases produced from aircraft grade alloys
• Heavy duty double bearing crankshaft
• Billet aluminum pistons and hardened steel rings
• Hard chromed and lapped cylinder bores
• Hardened steel cams
• Burns 87-110 octane gasoline with 32:1 gas/oil mixture

Technical information

• Cylinder:                   5
• Cylinder capacity:     180cc
• Bore:                         35.7mm
• Stroke:                      37mm
• Power:                      19kg of thrust
• RPM Range:            1000-6000
• Weight:                     4.7kg incl.(ignition coil and silencer)
• Width:                       275mm
• Lenght:                     198mm
• Propeller:                  30 x10  1000 - 5900 RPM 2 Blade Menz's
• Propeller:                  30 x 12   900 - 5600 RPM 2 Blade Menz's

• Propeller:                  28 x12    700 - 5300 RPM 3 Blade Biela
• Muffler type:              Collector Ring
• Plug type:                  CM-6 / 10mm RCEXL
• Carburetor:                WT 793-A Carburetor
• Petrol/Oil Mix:           1:32
